High HP Airfilter Setup

Talk and Tech about turbocharged 924/944/968 cars
Post Reply
Bergerac
Posts: 302
Joined: Mon Apr 03, 2023 3:00 pm
Has thanked: 20 times
Been thanked: 119 times
Wouldn't have to undo much the car was running on the standalone before I pulled the motor out, would just be a case of putting it back in, changing the tune/exhaust and removing some of the extra turbo cooling parts. The harness would have a couple of redundant plugs but two models are amazingly modular.

#11

Top
barnwerks
Posts: 90
Joined: Sun Mar 10, 2024 7:21 am
Has thanked: 1 time
Been thanked: 34 times
A couple things to add here. A 4" aluminum tube fits nicely in the factory inner fender opening. The end of the tube simply needs a bit of shrinking. The bracket for the ignition amplifier is in conflict with a 4" tube but the top ear of the bracket can be folded down to provide clearance.

#12

Top
Bergerac
Posts: 302
Joined: Mon Apr 03, 2023 3:00 pm
Has thanked: 20 times
Been thanked: 119 times
I dropped into see my fabricator today, he's confident he'll get 3.5" through without losing the whole headlight bracket. He has more issues with the 2.5" intercooler piping.

#13

Top
Bergerac
Posts: 302
Joined: Mon Apr 03, 2023 3:00 pm
Has thanked: 20 times
Been thanked: 119 times

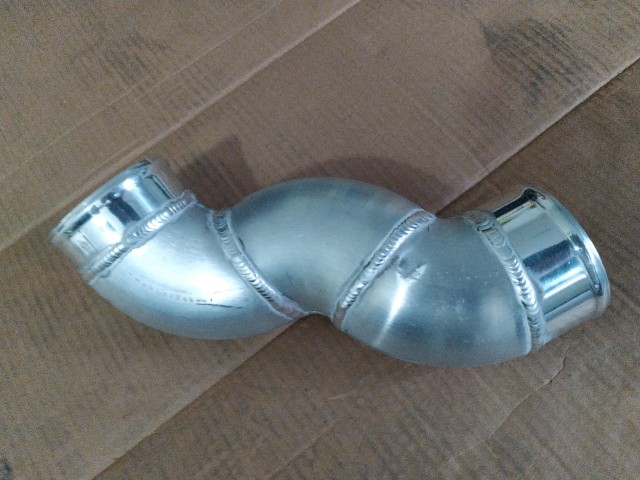

Not great photos but he made it happen with no cutting of the headlight bracket. 3.5" all the way to the filter behind the fog light. Still need to work out where the horns will go but thats not the end of the world.
Ill get some better pictures when I get the car back

#14

Top
User avatar
Thom
The First Carpoke!
Posts: 552
Joined: Sat Jun 26, 2021 2:31 am
Has thanked: 134 times
Been thanked: 151 times
Looking good!
'90 944 turbo

#15

Top
AudiSport
Posts: 186
Joined: Sun Jul 11, 2021 12:03 pm
Has thanked: 6 times
Been thanked: 61 times
You might have just traded "cooler" air for a restriction. The bends and length will certainly add to slower moving air.

#16

Top
User avatar
Thom
The First Carpoke!
Posts: 552
Joined: Sat Jun 26, 2021 2:31 am
Has thanked: 134 times
Been thanked: 151 times
AudiSport wrote: Thu May 01, 2025 5:17 pm You might have just traded "cooler" air for a restriction. The bends and length will certainly add to slower moving air.
Theoretically yes but I'd be surprised if it would make in practice a measurable difference.
'90 944 turbo

#17

Top
Bergerac
Posts: 302
Joined: Mon Apr 03, 2023 3:00 pm
Has thanked: 20 times
Been thanked: 119 times
Hopefully the larger tubing and filter combo will overcome any extra static pressure/restriction compared to the tiny pencil thin filter most people put behind the headlight.

#18

Top
User avatar
Tom
Site Admin
Posts: 8827
Joined: Fri Jun 25, 2021 2:04 pm
Location: Silicon Valley, CA
Has thanked: 913 times
Been thanked: 3901 times
Contact:
Contact Tom
I would think the 3.5" diameter will prevent any real restriction -- at least at any likely power level. Nice welds too! :)
